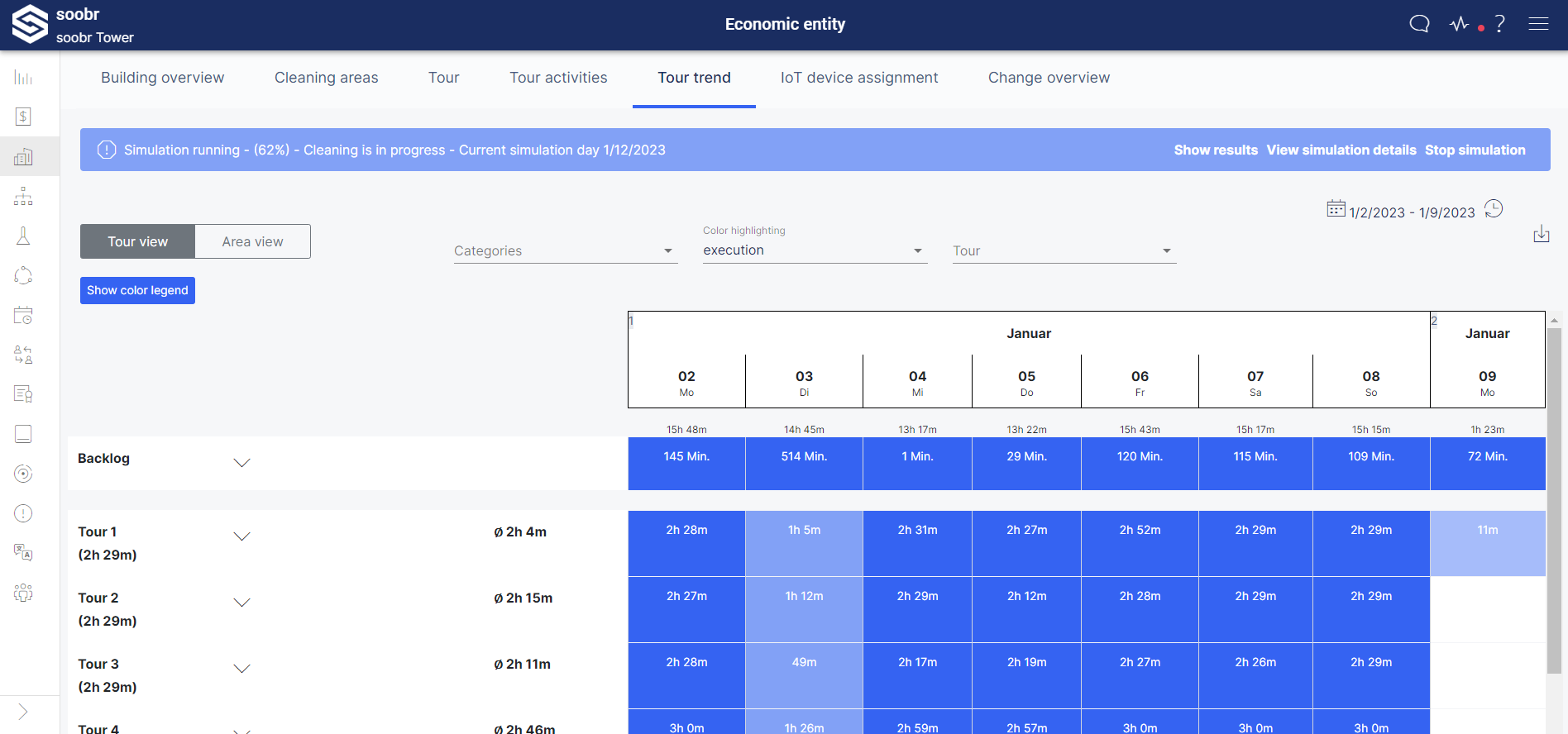

After a simulation has been performed, the result can be analyzed in the tour activities and in the tour trend. The results can be displayed in different ways.
Navigation
In the tour activities as well as in the tour trend, a simulation can be selected via the clock icon in the date selection.

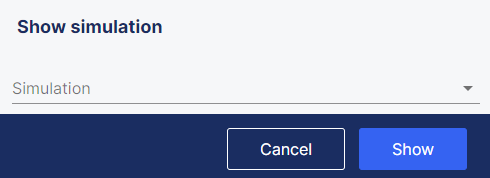

Clicking on the icon displays a dialog with all available simulations.
Types
There can be a maximum of four simulations per business entity. The simulations are valid for the current day and are automatically deleted at midnight.
| Type | Description | max. number |
| Auto. Simulation | This simulation is performed automatically at midnight, if the option is activated on the business entity. The activation can be done only by a soobr employee. | 1 |
| Current Simulation | A simulation that has been executed with the active tour configuration. | 5 |
| Version | Simulation with another tour configuration (version). The name of the version is displayed. | 5 |

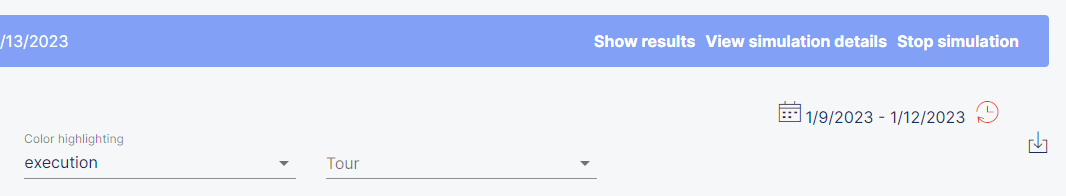

As soon as a simulation is displayed, the clock icon is highlighted in red.
Simulation details

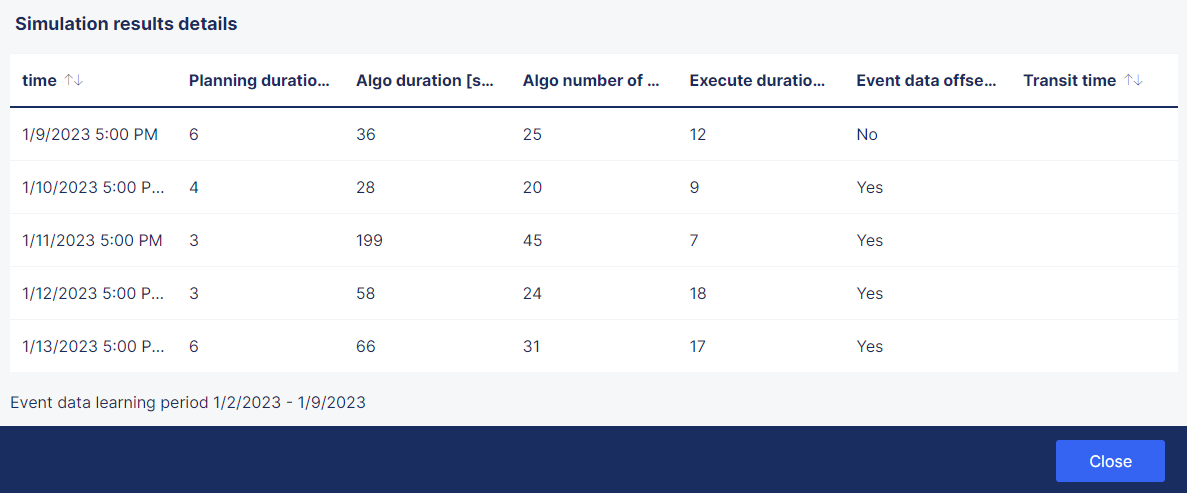

In the blue bar it is possible to see more details by clicking on View simulation details.
| Column | Description |
| Time | Completion time (cleaning execution) |
| Planning duration [sec] |
Duration for data preparation for the planning algorithm |
| Algo duration [sec] |
Duration of the planning algorithm to find the solution |
| Algo number of results |
Number of possible results found by the planning algorithm |
| Execute duration [sec] | Duration of the cleaning execution |
| Event data calculated | Yes, if IoT data were found for this day / execution. |
