Analyze simulation in tour trend

After the simulation has been performed, the result can be analyzed in the tour trend.

Analyze simulation in the tour trend

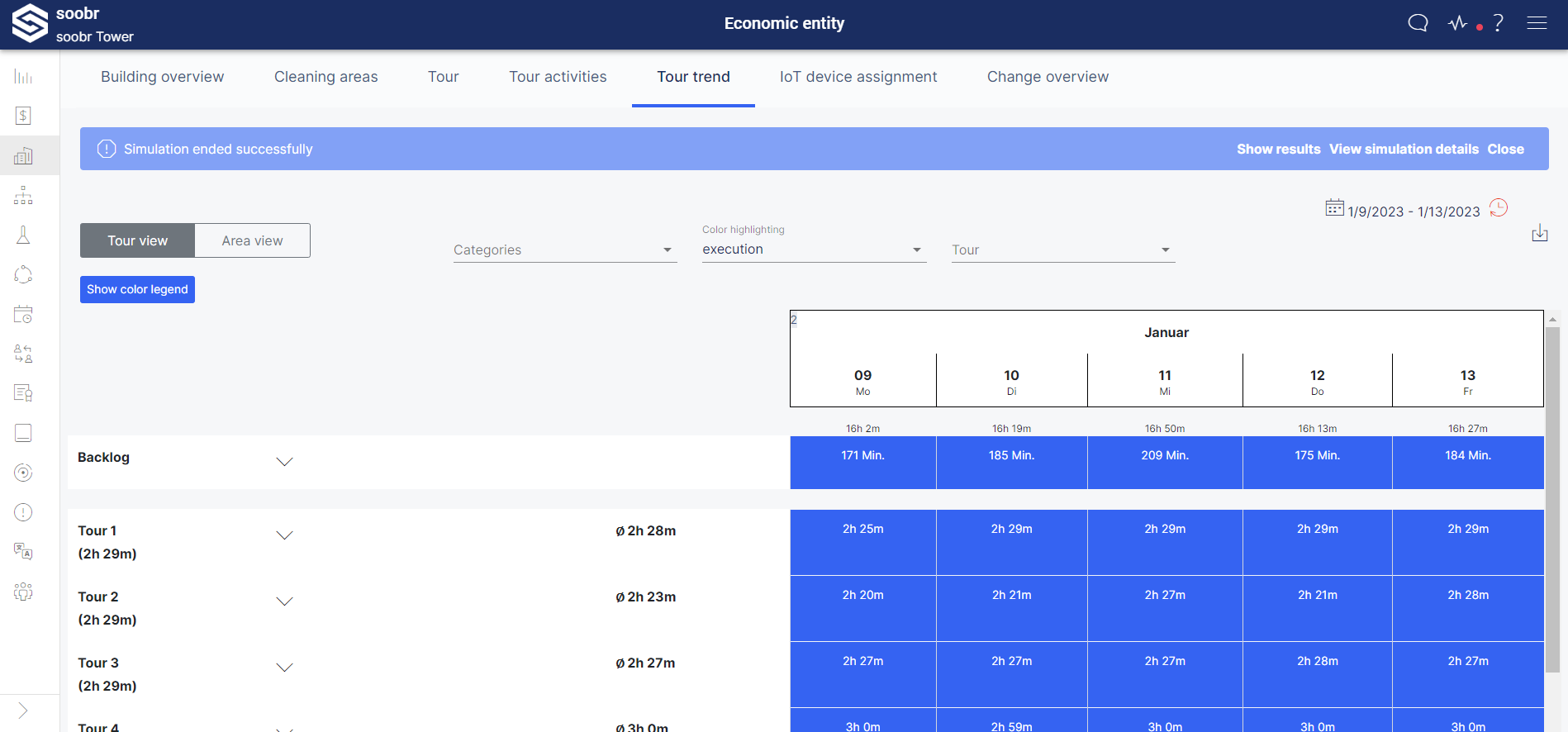

The analysis of the simulation results can be done in the menu item Economic entity under the tab Tour trend by clicking on Show results in the blue bar.

Here you can choose between a tour or area view. In addition, you can filter by categories and tours, as well as select a color highlighting for execution, triggers and planning information.

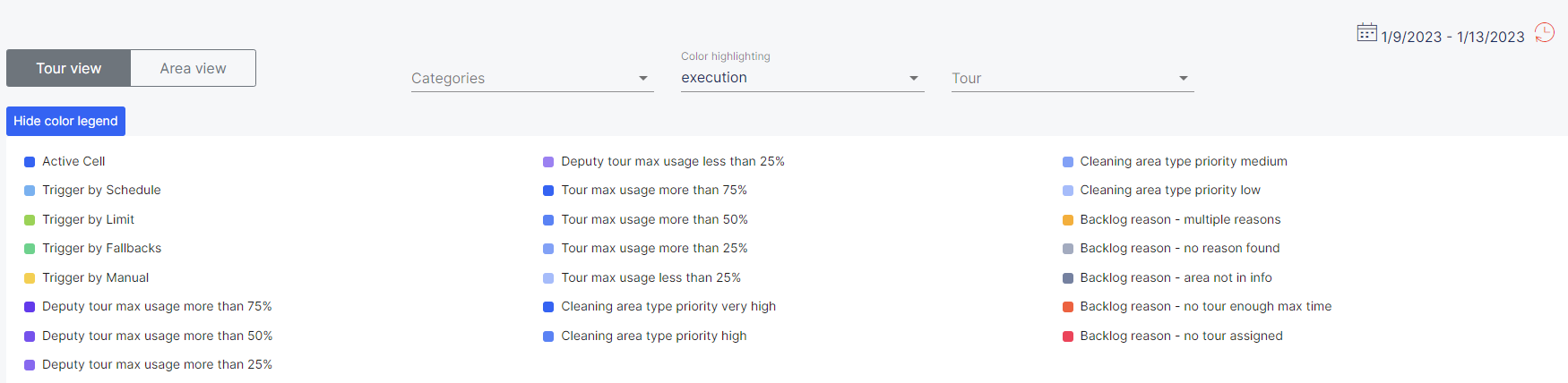

The color legend can be shown or hidden as needed.

Tour view

• In the tour view, the tours with their max. times are displayed in the left column. Here you can check if the times are in a realistic relation to the average operating time.
• To the right you can see the average operating time. It indicates the actual effort in the simulation per day.

• The first line of the table shows the times per day for the worklist.
• In the following lines, the time per tour per day is displayed.

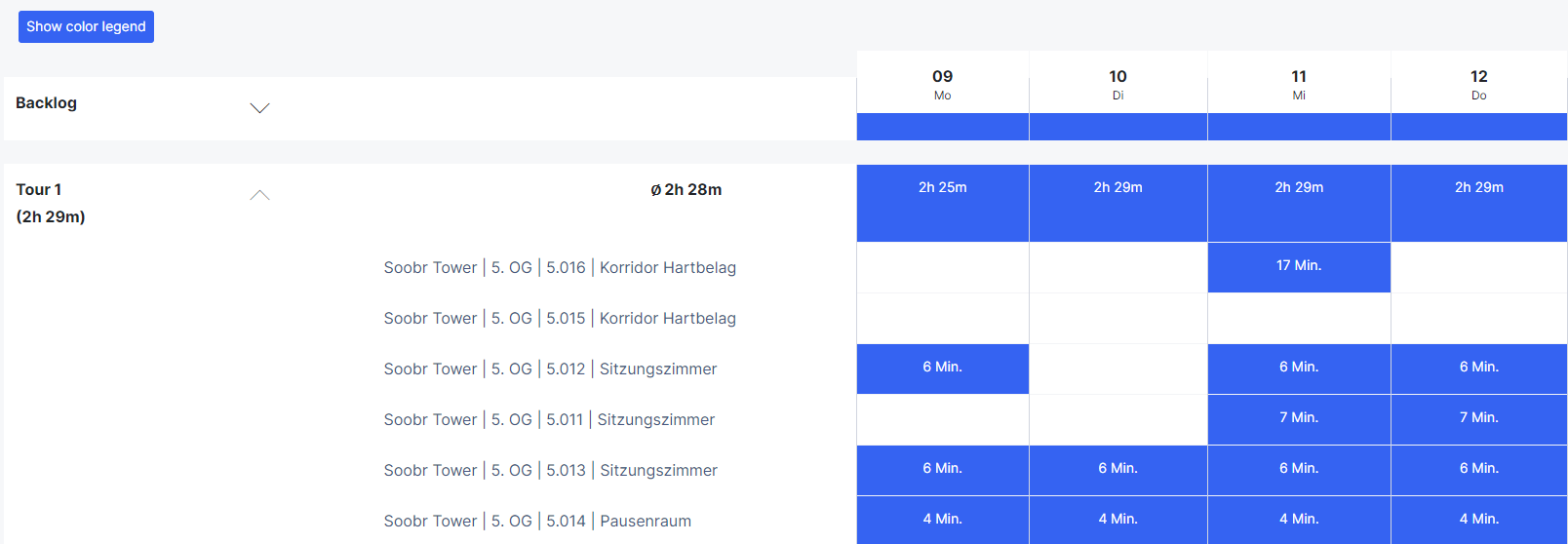

• By clicking on the gray arrow, the times are displayed again per surface.

Area view

In the area view, the individual floors are displayed in the rows. If you click on the gray arrow, the times for the individual areas are also displayed.

The following characteristics should be checked:

• The average working time in relation to the deposited maximum cleaning time.
• Workload in proportion (no areas that should have been scheduled but were not)
• Analysis of the executed cleanings vs. the SLA of the surface types
