After the simulation has been performed, the result can be analyzed in the tour activities.

Analyze simulation in the tour activities

The simulation results can be found in the Business entity menu item under the Tour activities tab by clicking on Show results in the blue bar.

In the tour activities screen, a simulation result can be analyzed in the following way:

• Cleaned areas are displayed in the building plan during the simulation period.
• Scheduled cleaning time per day shown per floor
• Distribution pattern for divided areas in the building plan
• Cleaning details for designs in the area analysis

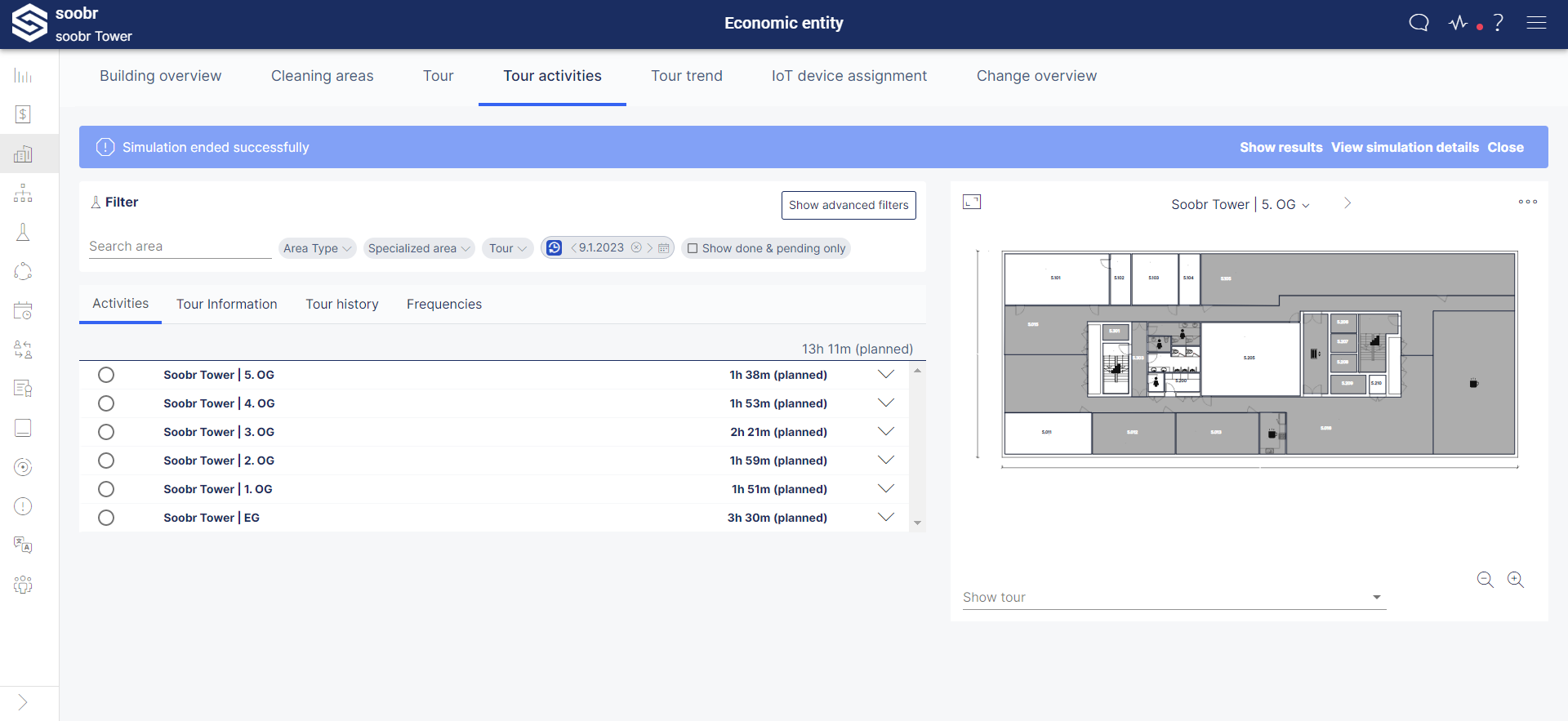

Analysis via building plan

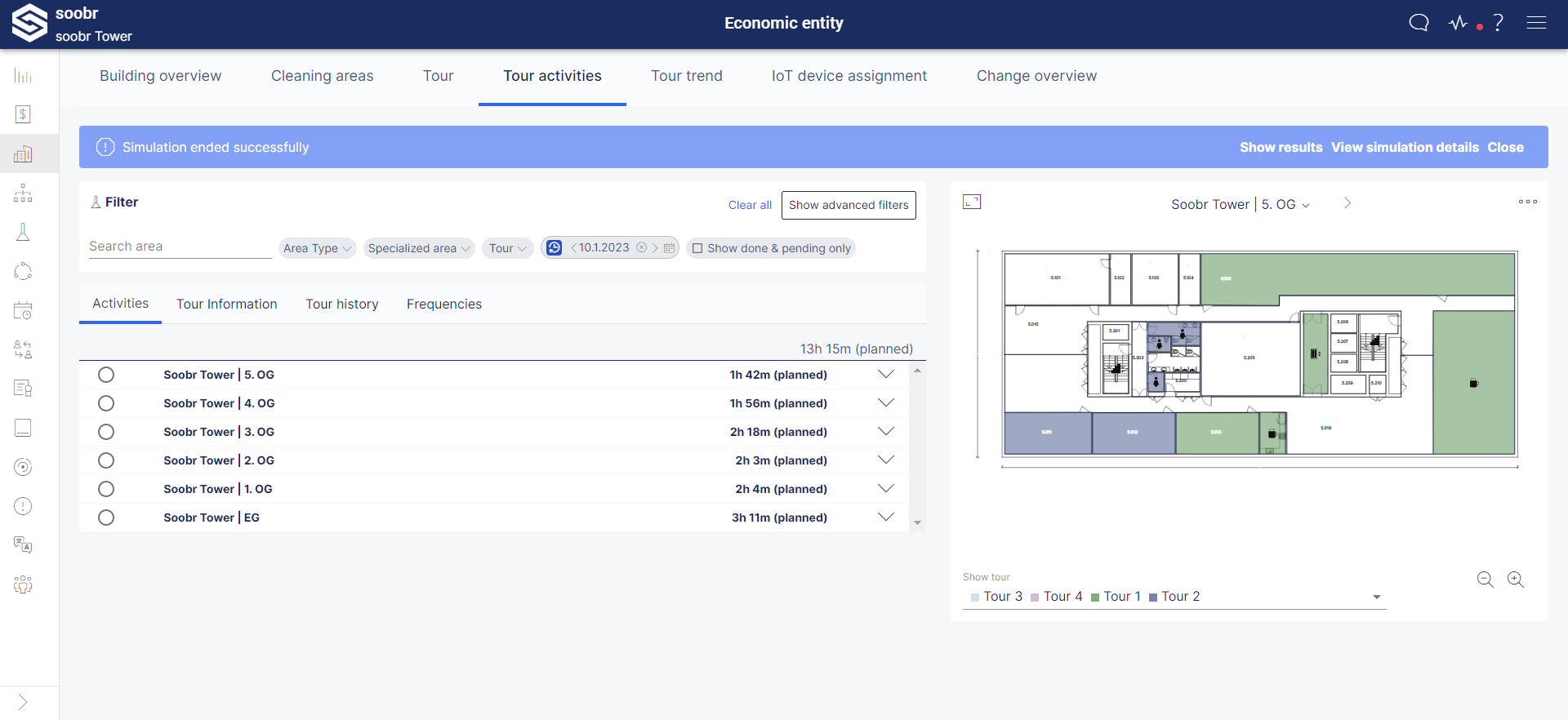

First of all, it is necessary to select a desired date for the simulation results. Then it is possible to analyze the cleaning effort per floor. Cleaned areas are displayed in the building plan.

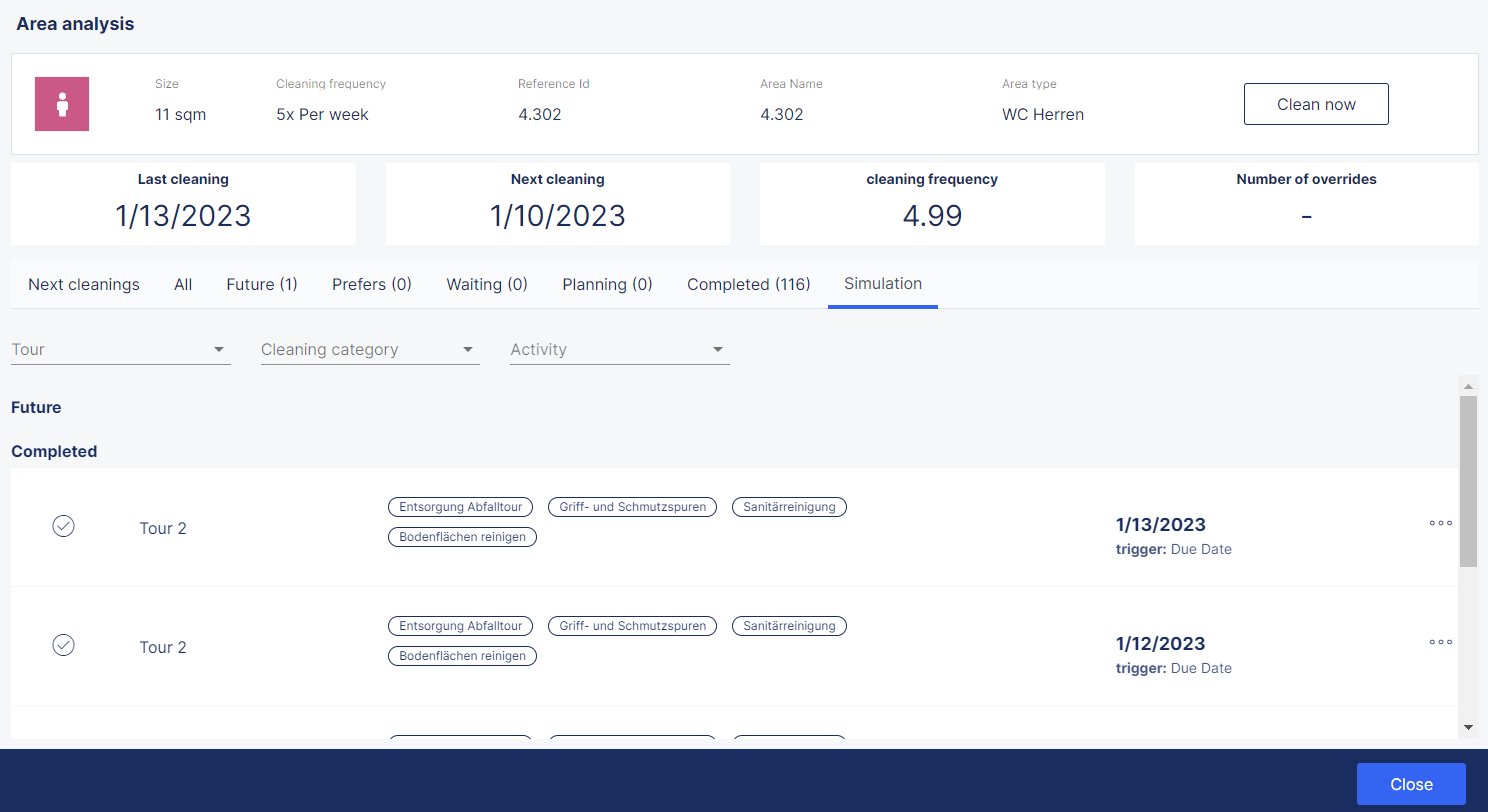

Area analysis in the simulation period

If you click on a surface in the building plan, the surface analysis mask opens. If you click on the Simulation tab, you will see all the cleanings that were performed during the simulation period. For a detailed analysis of the cleaning you can click on the symbol of the three dots and then on View details.

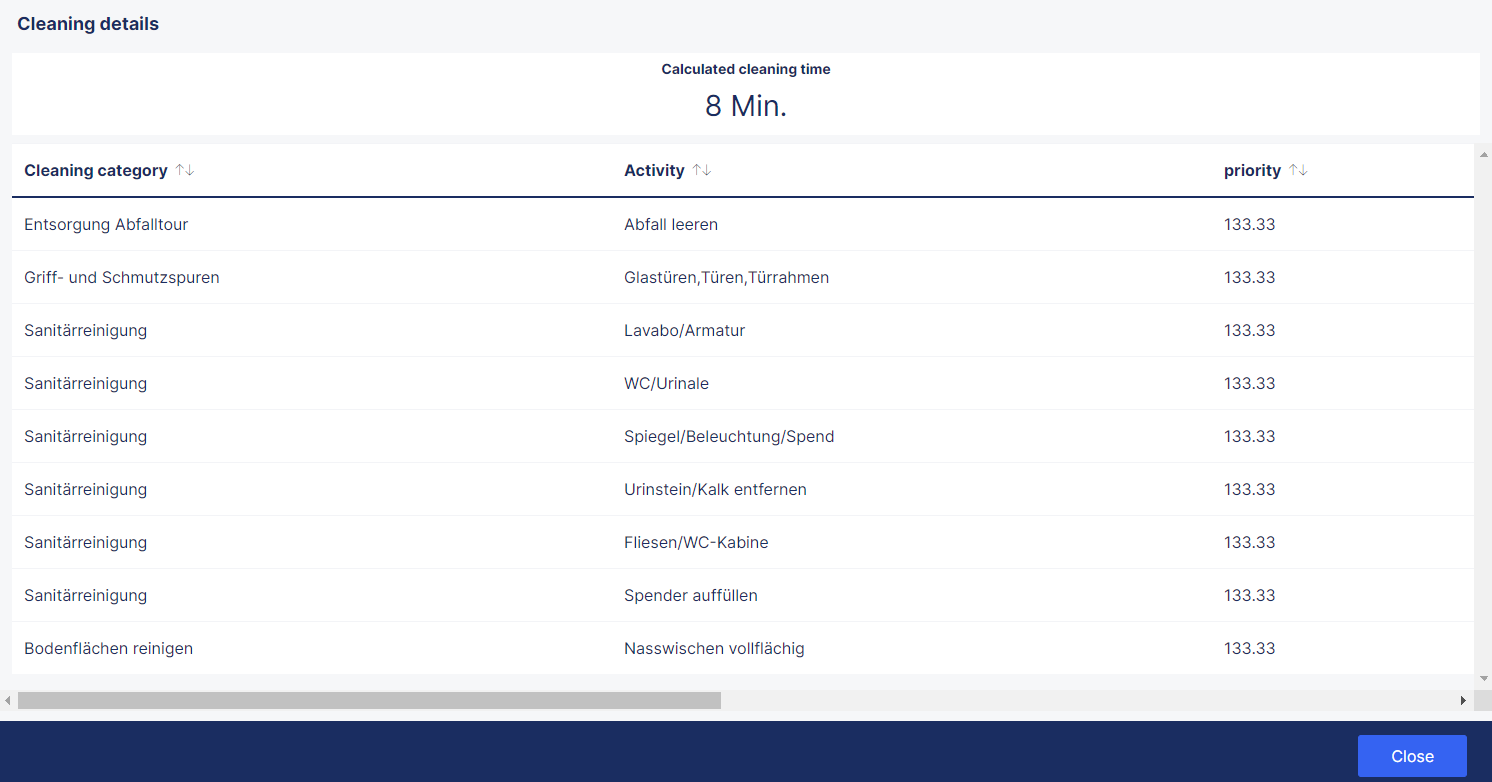

Detailed analysis of the performed cleaning

Here the cleaning time required on the surface is displayed. The Cleaning categories column shows the cleaning categories performed on the selected day. The Activity column shows the activity types with the highest frequency.
